SPECIFICATION

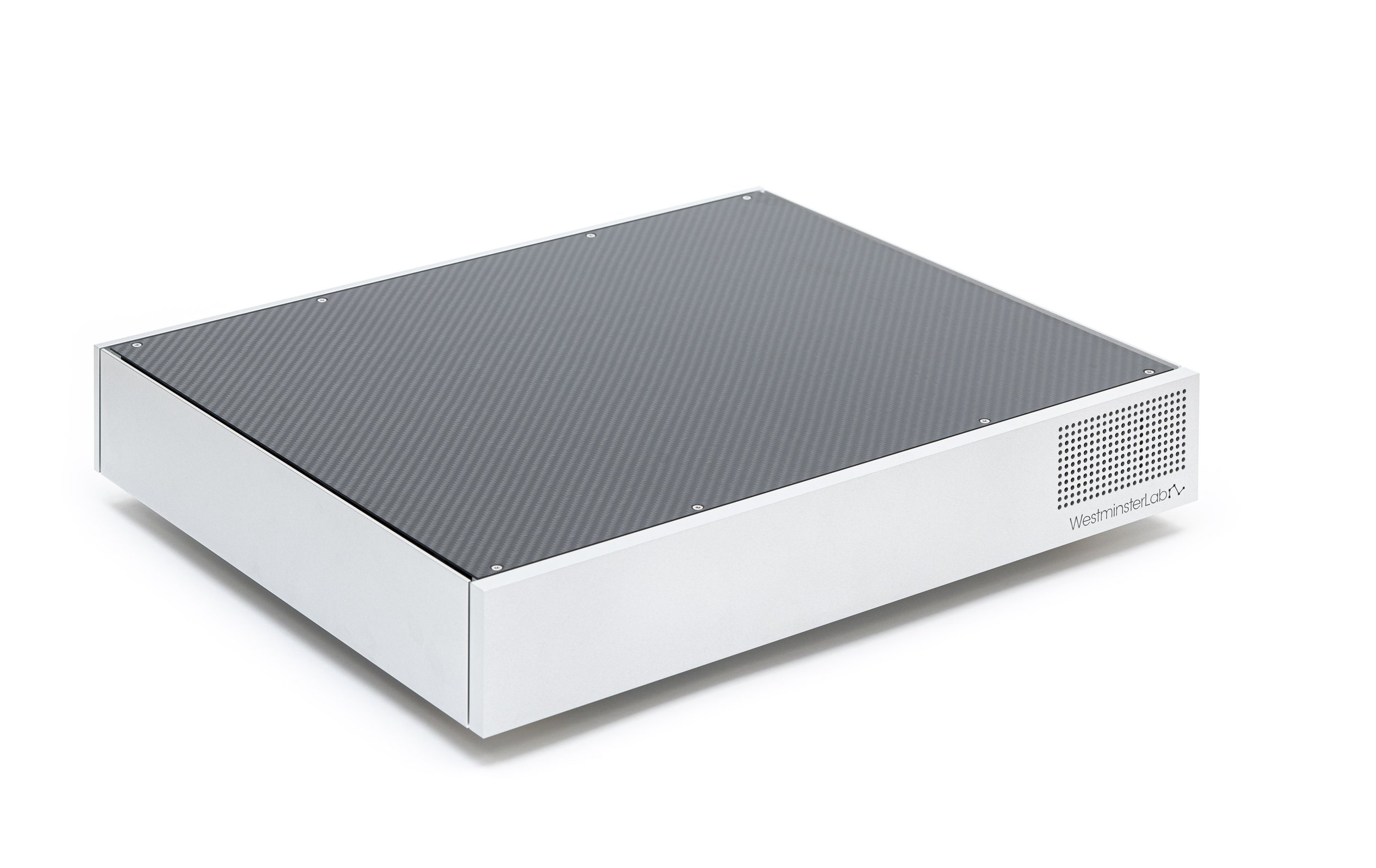

Quest
Distortion
<0.0001% @ 1kHz
Signal-to-Noise Ratio
>120dB, unweighted
Input
3 sets of balanced XLR input
2 optional modules
Input Impedance
51 kΩ
Input Voltage
6Vrms
Frequency Response
2Hz to 100kHz, 0.1dB

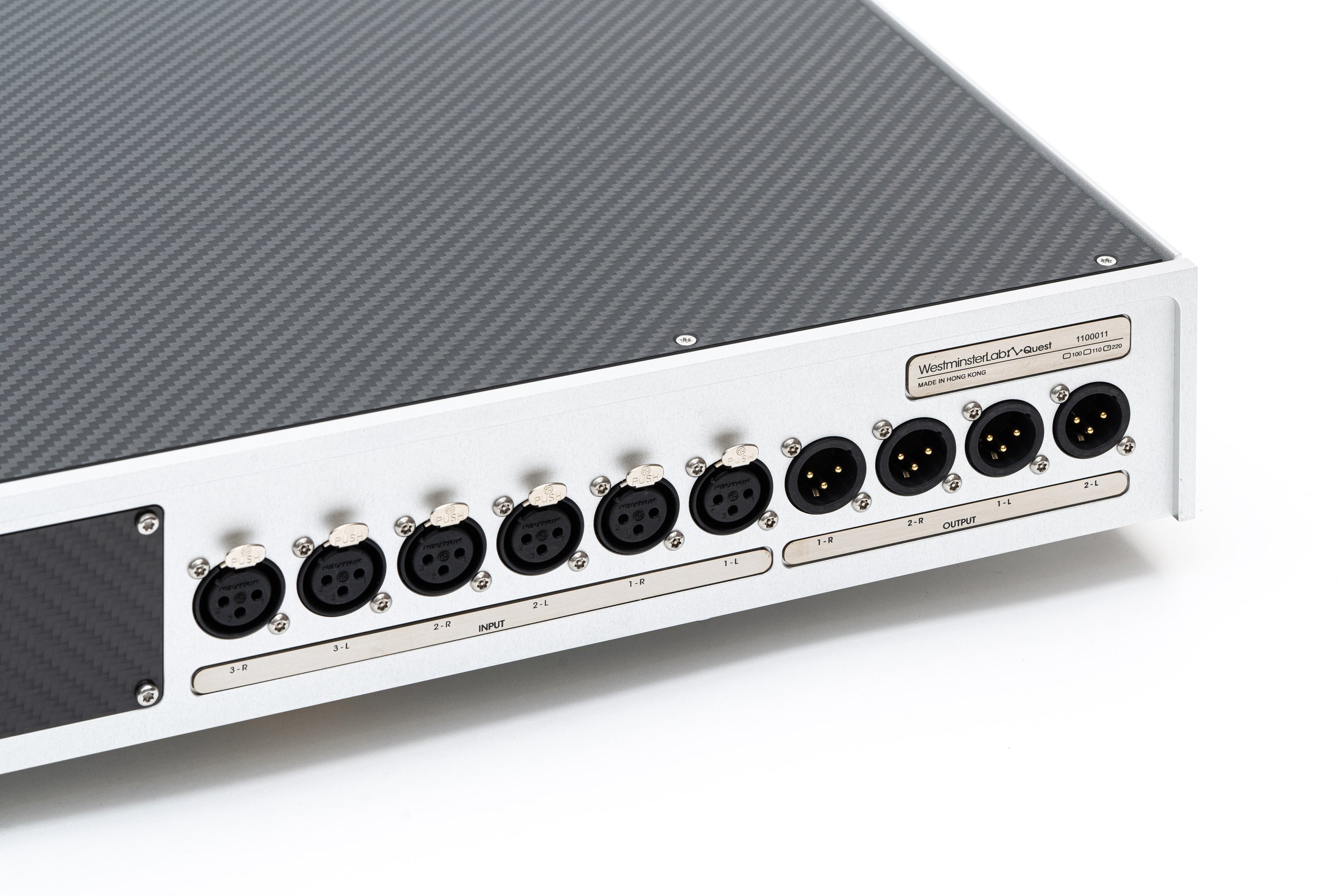

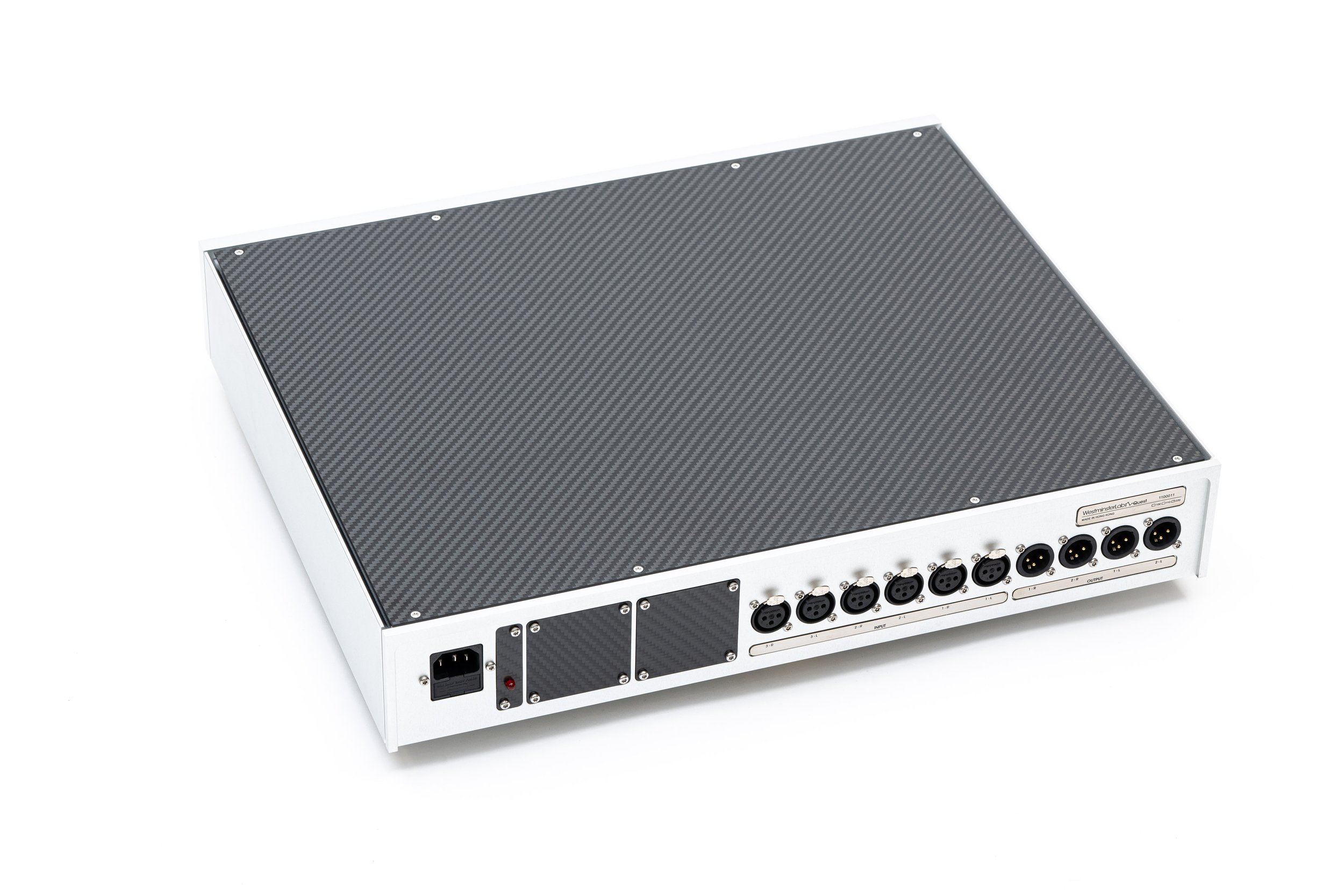

Outputs
2 sets of balanced XLR outputs
Output Voltage
12Vrms
Channel Separation
>120dB
Gain
6.5dB
Volume Control Range
0 to -63dB / Mute
Dimensions
W470 x H110 x D392 mm
Weight
13.2KG
OPTIONAL MODULE SPECIFICATION
DS Audio Equaliser
Input
1 set of unbalanced RCA input
Gain
27dB
Compatibility
All DS Audio cartridges. DS Audio certified equaliser.
Outputs
19pin proprietary socket
MC/MM Phono
Input
1 set of balanced XLR input or
1 set of unbalanced RCA input
Input Impedance
60Ohm to 47kOhm ( 18 steps )
Loading Capacitance
22pF to 322pF ( 5 steps )
Gain
40dB to 70db ( 4 steps )
Compatibility
Variety of modern and vintage MC/MM/MI cartridges.
Outputs
19pin proprietary socket
RCA Input
Input
1 set of unbalanced RCA input
Input Impedance
51 kΩ
Input Voltage
6Vrms
Frequency Response
2Hz to 100kHz, 0.1dB
Outputs
19pin proprietary socket
Gain
6dB
