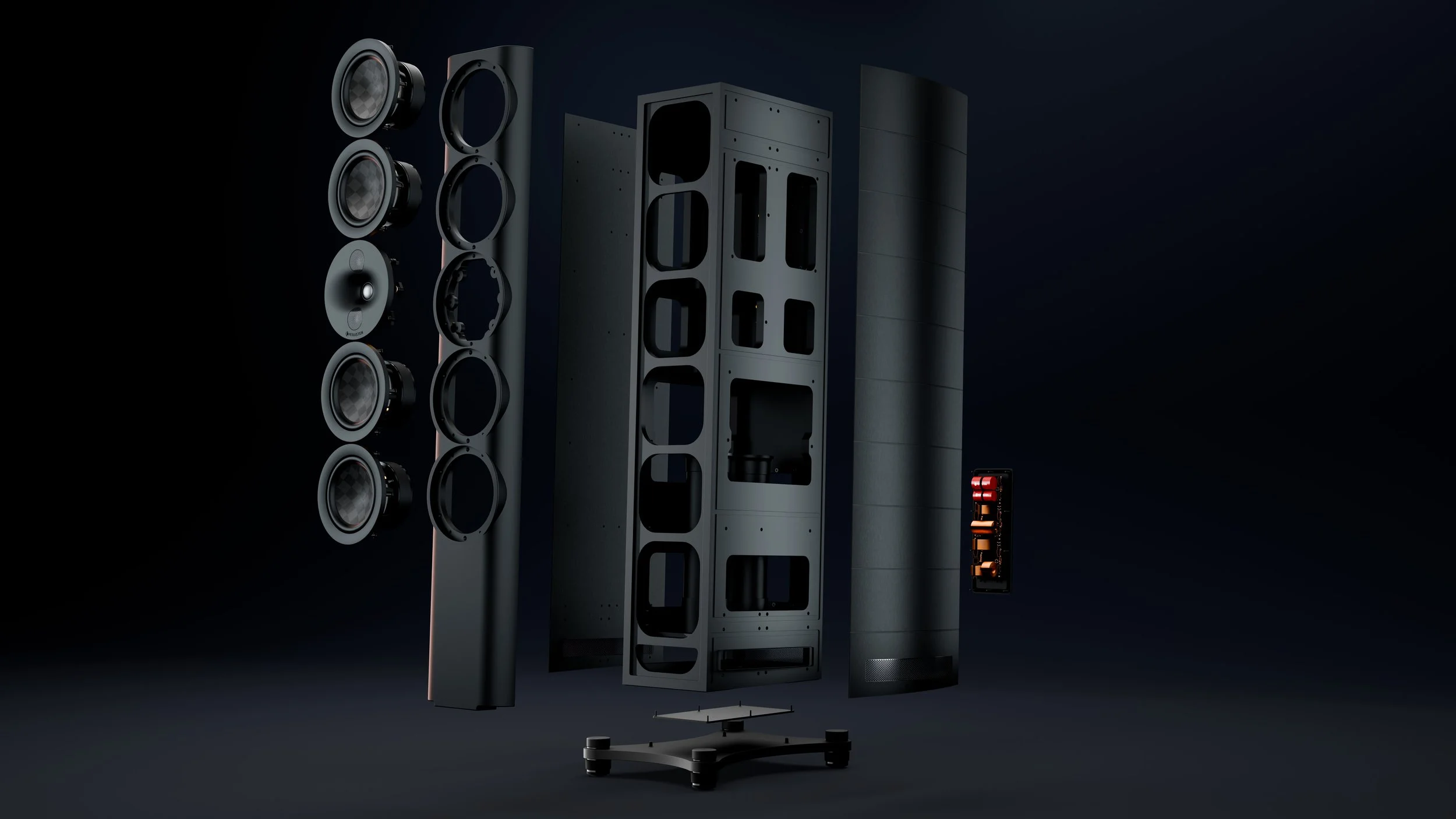

updated cabinet with aluminium side pannels
The original S7t's cabinet structure has been significantly enhanced with the addition of aluminum side panels.
These panels not only add mass to the S7t Black Edition but also bring a host of benefits, including improved damping and a sleek, modern aesthetic.
The S7t Black Edition, with its robust aluminum construction and stunning architectural design, is a testament to the perfect marriage of art and acoustics. This unique combination not only enhances the speaker’s volume and clean look but also delivers more woofer excursion and Perlisten’s top performance to date.
CNC Milled DPC
At the heart of Perlisten premium speakers is our USA-patented DPC array
The (TPCD) TexTreme carbon fiber used in our midrange drive units is also the key to the performance of our woofers, resulting in lighter-than-air dynamics and the impact you expect in a flagship Speaker that can play down to 20Hz in-room.
This technology is 30% lighter than standard carbon fiber of the same thickness, with increased strength from using the unique process of stacking multiple layers. The unique weave is unmistakable and distributes break-up modes without sharp response peaks, while extending bandwidth. Simply perfect.

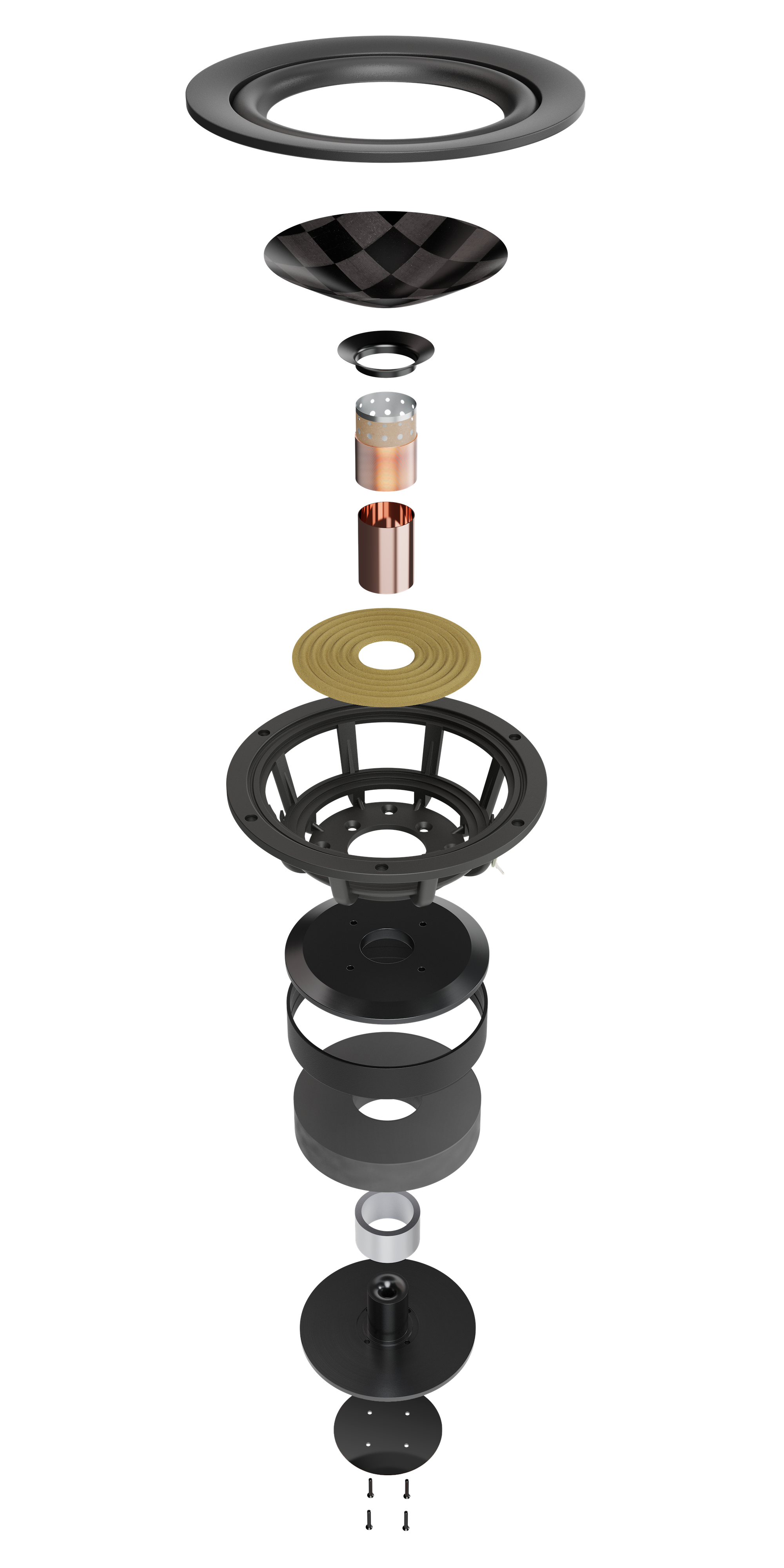

Improved Woofer featuring textreme
The S7t already set the standard
for PERLISTEN bass performance
With accurate transient response, low distortion, and excellent low frequency extension. Is it possible to improve upon this? Drawing on the existing Textreme thin ply carbon diaphragm (TPCD) and suspension components, we set out to improve low frequency capability and thermal management. The re-designed voice coil and magnetic circuit now enable 20% more linear excursion, yet further reduced the overall inductance. This was achieved by utilizing a secondary shorting ring and re-designed voice coil windings. The secondary shorting ring doubles as a large heatsink inside the motor structure, coupled to the external copper heatsink using a unique mounting system of aluminum fasteners. The external heatsink is floated above the rear of the t-yoke assembly allowing for convection cooling of the voice coil and heatsinks as the air flow created by the voice coil’s excursion quietly flows past. All of these refinements yield improvements in all key performance categories: Linear excursion, distortion, thermal compression, transient performance, and midrange clarity.

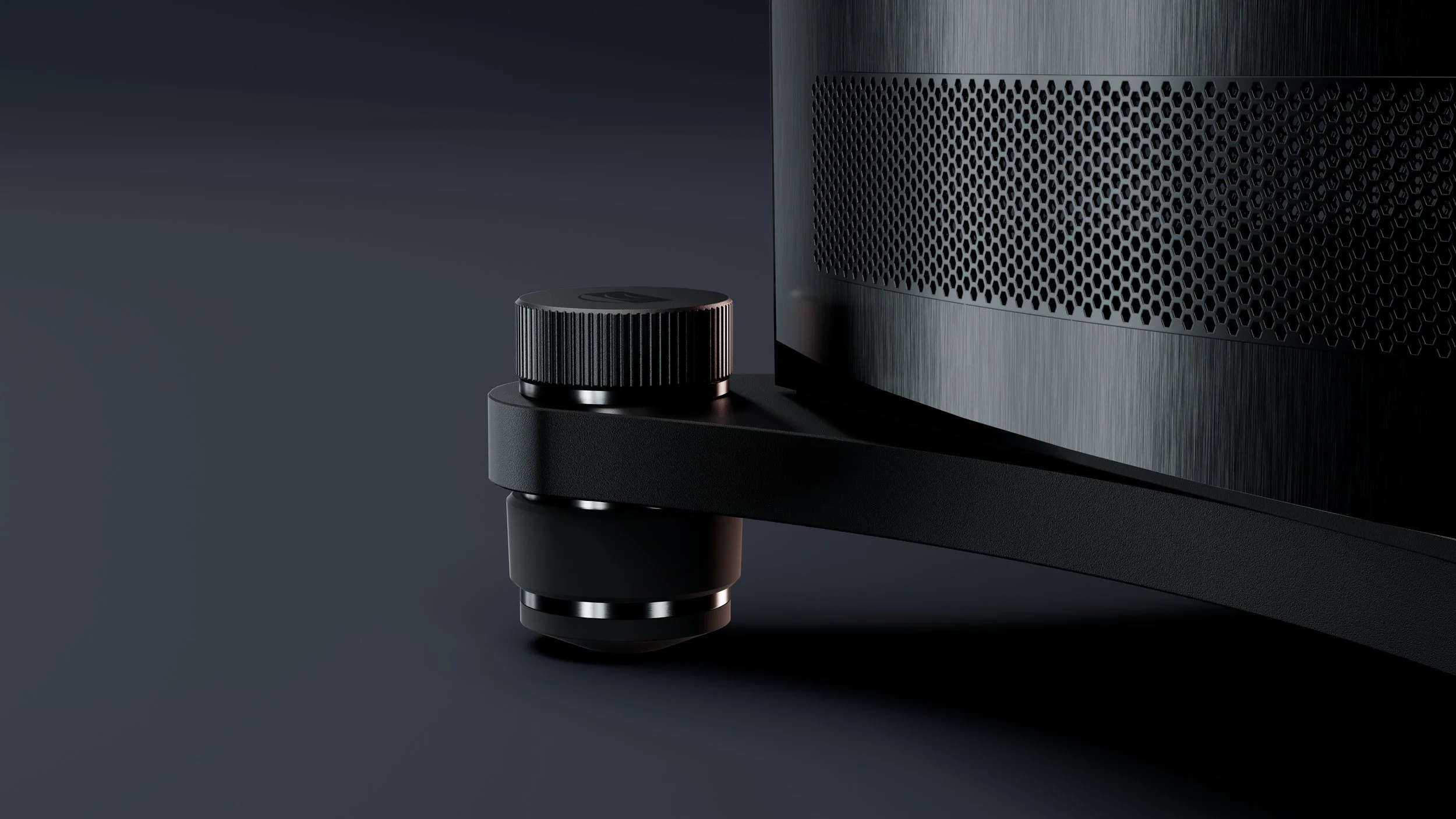

Isolation engineered by Perlisten
INNOVATIVE LIKE THE REST OF OUR PRODUCTS - NO COMPROMISE. THE NEED FOR THE BEST ISOLATION, STABILITY AND VIBRATION ISOLATION IS CRITICAL AND PART OF PERLISTIN DNA, is BRINGING YOU THE LATEST IN AUDIO TECHNOLOGY.
Through science and engineering, PERLISTEN™ has created our own isolation/damping system currently available on the S7t Black Edition. This provides a high degree of isolation while resisting lateral movement and oscillations to maintain alignment with the listening position. Internal reflections from the hard-supporting surface are attenuated, resulting in greater sound clarity and openness. Furthermore, the massive 18 kg machined steel base keeps the speaker cabinet grounded.
Engineered in USA
METICUALOUSY DESIGNED AND ENGINEERED IN THE USA at our headquarters located in Madison, Wisconsin
Once again, science and engineering—no smoke and mirrors. We perform a comprehensive set of measurements to validate our designs. We take the original artistic intent very personally. As experience lovers, we design our speakers to meet the highest standards. Trust us, we are at the next level when it comes to low distortion, wide and deep imaging, and extremely accurate performance. We are our own worst critics.
SPECIFICATIONS
Enclosure Alignment
4-way bass reflex/acoustic suspension
Driver Compliment
DPC-Array:
28mm Beryllium
28mm(2) Textreme TPCD
Woofers: 180mm(4) Textreme TPCD
Sensitivity
91.4dB/2.83v/1.0m
Response Linearity
80-20kHz +/-1.5dB Window
Frequency Response (-10dB)
Bass Reflex: 22-37kHz
Acoustic Suspension: 32-37kHz
Typical in Room Bass Extension
Bass Reflex: 16Hz Acoustic
Acoustic Suspension: 23Hz
Dimensions (HxWxD)
52.5 × 14.4 × 18.7”
Weight
247 lbs
Recommended Amplifier Power
100 - 600W RMS
SPL capability @1m (100-20kHz)
119.4dB peak <2% - 2nd, 3rd Harmonics
Available Finishes
Satin Black Anodized Aluminum
