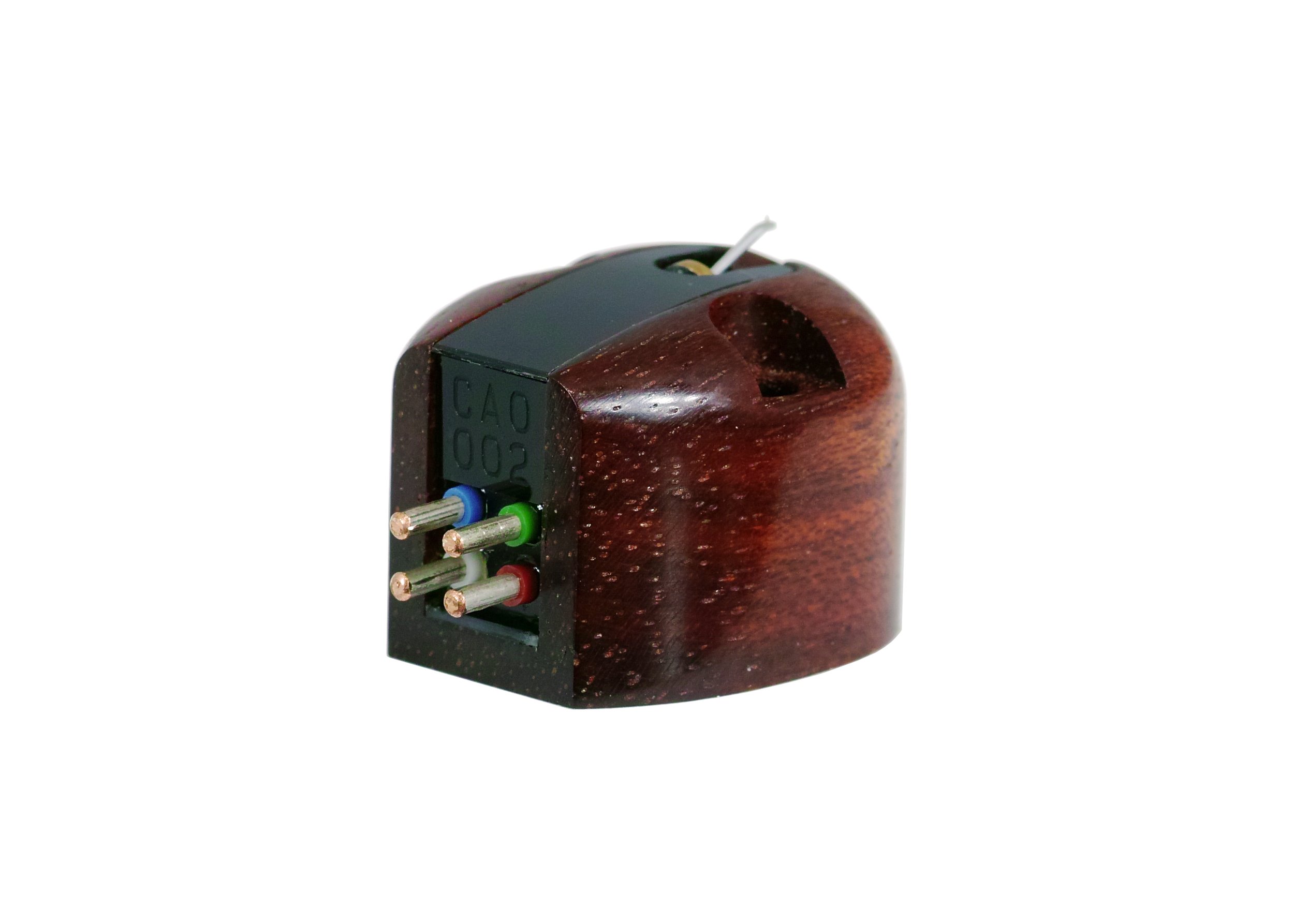

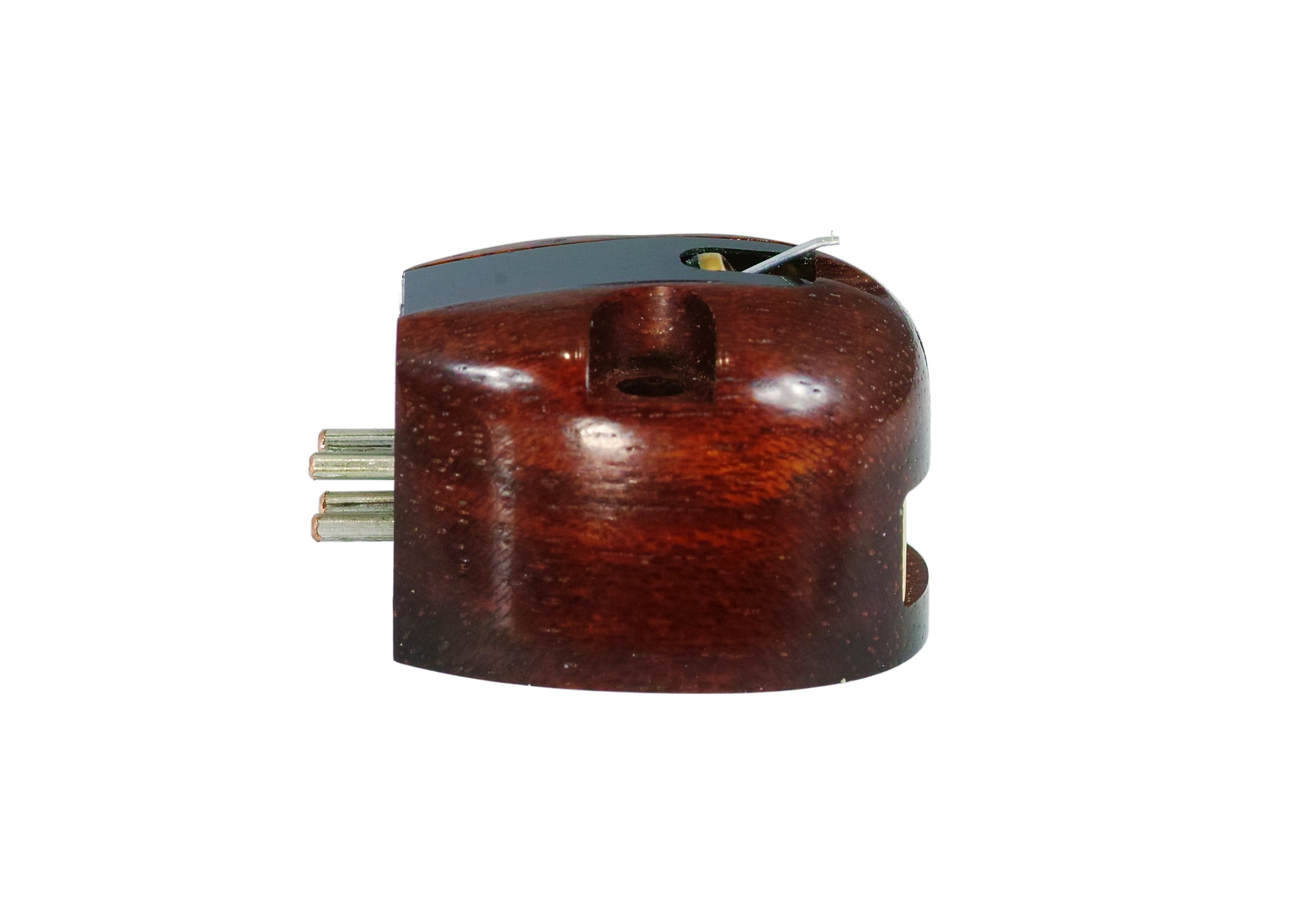

Miyajima Labs Carbon Cartridge
The Carbon is based on Takumi's balance, but with a line contact stylus that raises the frequency response.
A thin cantilever like the Takumi has a uniform sound quality, but the sound is a little softer.
By inserting carbon nanofibers into the cantilever, the sound quality has a clear outline and a core.
The sound quality is spectacular and balanced.
If you are interested in the Carbon, please contact us HERE
The Carbon is based on Takumi's balance, but with a line contact stylus that raises the frequency response.
A thin cantilever like the Takumi has a uniform sound quality, but the sound is a little softer.
By inserting carbon nanofibers into the cantilever, the sound quality has a clear outline and a core.
The sound quality is spectacular and balanced.
If you are interested in the Carbon, please contact us HERE
The Carbon is based on Takumi's balance, but with a line contact stylus that raises the frequency response.
A thin cantilever like the Takumi has a uniform sound quality, but the sound is a little softer.
By inserting carbon nanofibers into the cantilever, the sound quality has a clear outline and a core.
The sound quality is spectacular and balanced.
If you are interested in the Carbon, please contact us HERE
Maker Miyajima-Laboratory
Product name Stereo cartridge -Carbon-
Impedance About 16 ohms (About 0.21mV output)
Frequency range (-3dB) 20 Hz to 32 kHz
Tracking force 2.3 g
Stylus Shape nude Line Contact diamond stylus
Compliance (10Hz) around 9×10-6cm/dyne
Appropriate temperature 20-30 Celsius (most suitable 25 C)
68-86 Fahrenheit (most suitable 77 F)
Weight About 8.9g
Size W 18.8mm × D 21.9mm (excluding terminals)
Body Satine
